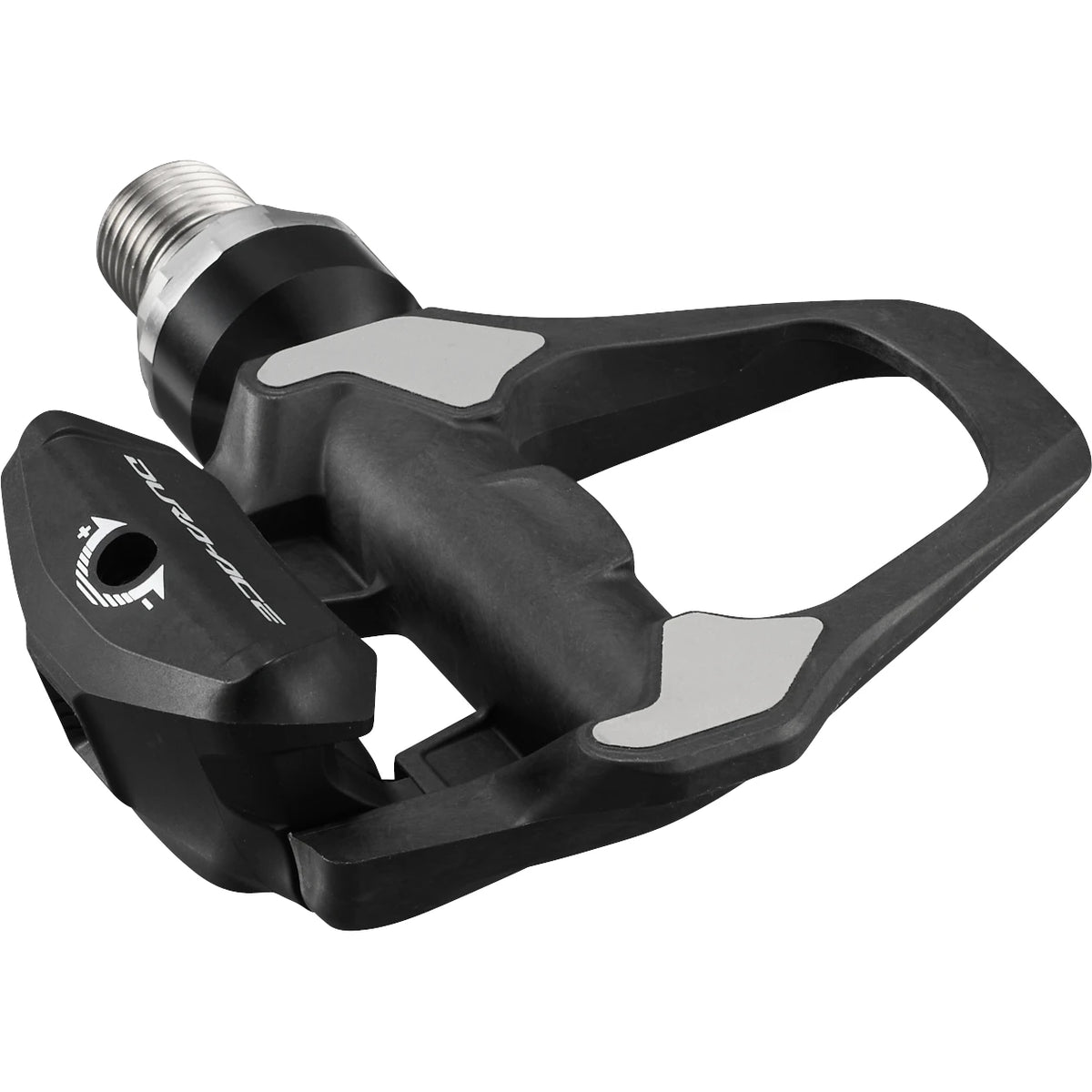

The Shimano Dura-Ace PD-R9300 introduces the next generation of Shimano road pedal performance with the all-new SPD-SLR platform. Developed for competitive road cyclists, the new design delivers a lower, stiffer and more direct connection between rider and bike for maximum efficiency under power.

An ultra-low 12.5 mm stack height positions the foot closer to the pedal axle, improving stability and power transfer. The lightweight carbon composite pedal body features an extra-wide platform and integrated stainless-steel contact plate for exceptional support and interface stiffness.

A redesigned axle and bearing system further improves rigidity while significantly reducing rotational resistance for exceptionally smooth pedalling. The new SPD-SLR engagement system also features a wider cleat catch and reduced engagement angle, making clipping in faster and more intuitive.

Supplied with Shimano CL-SL110 Yellow SPD-SLR cleats offering 6° of total float.

Technical Specifications

• Series: Shimano Dura-Ace
• Model: PD-R9300
• Pedal system: SPD-SLR
• Body: Carbon fibre-reinforced composite
• Stack height: 12.5 mm
• Average weight: Approx. 227 g per pair
• Extra-wide pedal platform
• Integrated stainless-steel contact plate
• Improved axle and bearing design
• Supplied cleats: CL-SL110 Yellow
• Cleat float: 6° total / ±3°
• Road cycling and racing use

Compatibility Note: PD-R9300 pedals require Shimano SPD-SLR cleats. Existing SPD-SL cleats are not compatible with the new SPD-SLR pedal system. SPD-SLR cleats can, however, be fitted to existing SPD-SL-compatible road cycling shoes.
